Morningstar Engineering MC6 MKII

Morningstar Engineering MC6 MkII

The Morningstar MC6 MkII brings the full power of MIDI control straight to your pedalboard in a compact and highly flexible package. Featuring 30 programmable banks, each switch on the MC6 MkII can send up to 16 different MIDI messages. Assign common commands like program changes and control changes, or dive deeper with notes, SysEx, MIDI Clock, MMC, and more. Each footswitch can trigger different actions—such as Press, Release, or Double Tap—giving you precise control over your setup.
The MC6 MkII can be powered by standard pedalboard power supplies or USB, and connects easily to the Morningstar Editor App on desktop and mobile for fast, intuitive programming. If you need next-level MIDI control without sacrificing pedalboard space, the MC6 MkII is the answer.

Features:

• Compact, versatile MIDI controller pedal

• 6 footswitches, each assignable to a wide variety of MIDI functions

• 30 banks, with up to 16 message assignments per footswitch

• Supports MIDI PC, CC, Note, SysEx, MIDI Clock, MMC, and more

• Actions enable different messages based on gestures like Press, Release, Double Tap, etc.

• 4 independent MIDI CC Waveform Engines for LFO-style control automation

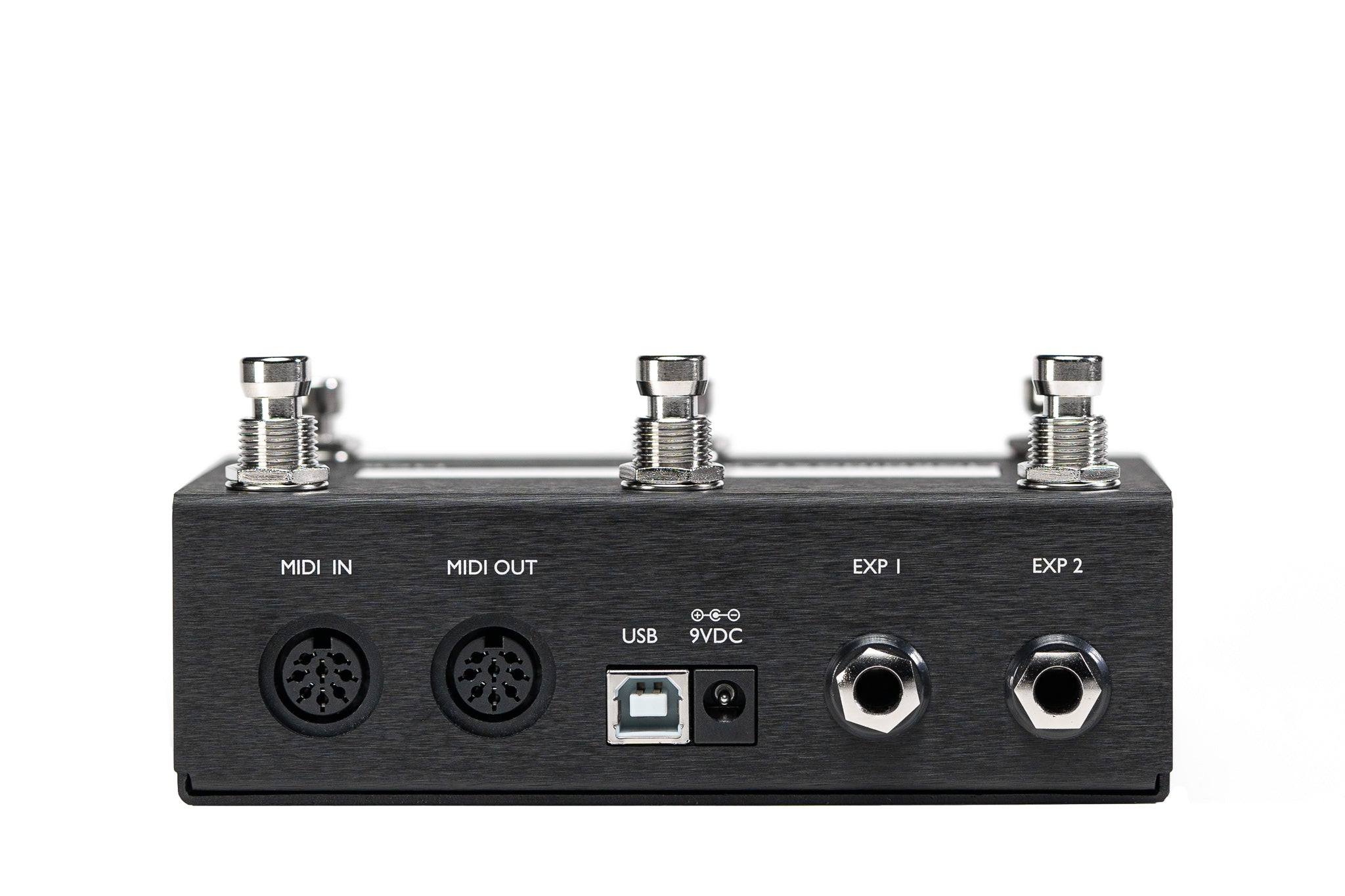

• 5-pin DIN MIDI input and output

• Two 1/4" TRS Omniports configurable as MIDI outputs, aux switch inputs, or expression pedal inputs

• Powered by standard 9V pedal power supplies or via USB

• Seamless integration with the Morningstar Editor App for desktop and mobile programming
