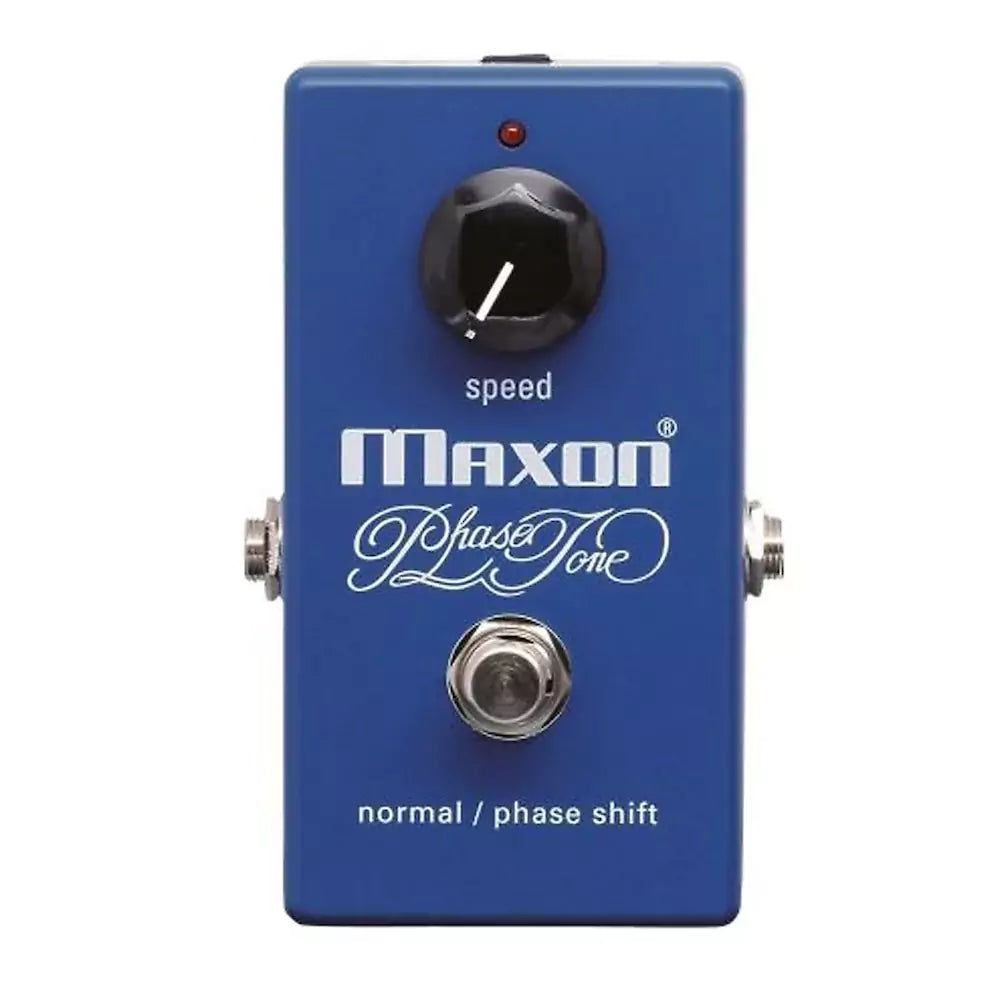

Maxon Reissue PT999

With its single knob, the Maxon PT999 Phase Tone Pedal looks deceptively simple. Yet packed into this tiny blue box is a host of the most authentic 70’s-era phasing effects available in a current production unit.
The secret behind the PT999’s timeless tone lies in the fact that its circuit is exactly the same as it was when first introduced in 1974. While many “reissue” effects are far from true to the original designs, Maxon has taken great pains to keep the Phase Tone unchanged for close to 40 years.

By adjusting the lone Rate control, a wide variety of expressive phasing nuances can be coaxed from the PT999 – all of them whisper quiet and amazingly transparent. Its minimalist circuit doesn’t get in the way of your guitar tone – it simply accentuates it, working equally well to spice up clean or distorted sounds.

If you demand classic phase shifting effects without compromising your guitar’s signature tone, the PT999 Phase Tone has no equals.

STATS

Input Impedance: 500K Ohms
Input Jack: 1/4 inch standard phone jack
Output Impedance: 10K Ohms
Output Jack: 1/4 inch standard phone jack
Output: 1 Controls: Rate
Switch: Normal/Effect
Max Input Level: 0 dBu
Noise (IHF-A): -80 dBu
Speed Frequency: 0.2 Hz ­ 14 Hz
Power Supply: 9V Manganese dry cell battery (S-006P) or special AC adaptor
Power Voltage: DC9 V (Battery) / DC10 V (AC-adaptor)
Current Consumption: 12 mA (9V) / 14 mA (10 V)
AC Adaptor: AC210N (option) Input: AC120V Output: DC9V/200 mA Center – / Sleeve +)
Dimensions (main body): 61 mm (W) x 112 mm (D) x 35 mm (H)
Dimensions (whole): 70 mm (W) x 112 mm (D) x 55 mm (H)
Weight: 270 g Accessories: 9V Manganese dry cell battery (S-006P) x 1
Non-skid pad: x 1
Warranty Card: x 1
User’s Manual: x 1
